GB10 Nonmetallic Rolling Bearings
- GB10 Nonmetallic Rolling Bearings Universal GB10 series of non-metallic rolling bearings, POM and PA material with good mechanical strength and wear resistance, suitable for the production of more sophisticated plastic bearings, its good self-lubricating properties and low coefficient of friction, while maintaining the traditional advantages of plastic bearings on, it can be used in precision and high speed operation. Wherein POM plastic bearings plastic bearings in all the most widely used one, the general material used inside and outside the ball POM or PA.
Technical ParametersProductsApplicationsSize table Download
Technical Parameters
Density | 1.42g/cm³ |
Friction coefficient | 0.34 |
Continuous work temperature | +80℃ |
Lowest temperature | -40℃ |
Max.water absorption,23℃ | 0.20% |

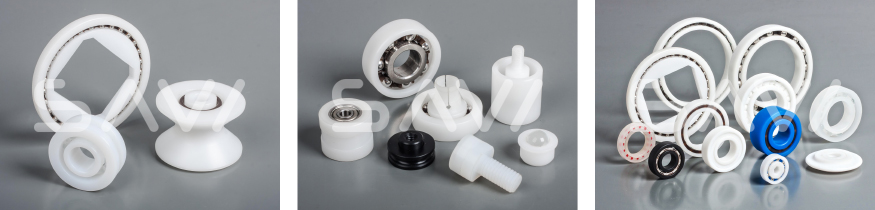

Products
Applications
EP material possesses a series of excellent self-lubricating properties and wear resistance are mainly engineers take full advantage of the self-lubricating material modification technique, using high-strength fibers in high-performance engineering plastics to improve the material and bearing special grease reduced friction coefficient (Figure 1), thereby improving the wear resistance of composite materials to extend the service life of bearings.
Performance engineering plastics as the base material is mainly used as wear-resistant carrier;
Reinforcing fibers improve the impact resistance and bearing in bearing;
Special grease reducing the coefficient of friction from self-lubricating bearings.
-
GDB10
Nonmetallic rolling bearingsGDB10 as the most versatile plastic rolling bearings with good strength...
READ MORE >>
-
GDB20
Nonmetallic rolling bearingsGB20 series of non-metallic rolling bearings main PP, TPE materials ...
READ MORE >>
-
GDB30
Nonmetallic rolling bearingsGB30 rolling bearings nonmetallic materials PTFE and PVDF...
READ MORE >>
-
GDB40
Nonmetallic rolling bearingsGB40 rolling bearings nonmetallic materials PEEK and PI is a major...
READ MORE >>
-
GDB50
Nonmetallic rolling bearingsGB50 ceramic rolling bearings with anti-magnetic insulation...
READ MORE >>
