Bimetallic Composite Rolling Bearings
- Bimetallic Composite Rolling Bearings JF-800 Bimetallic composite bearings to high-quality low-carbon steel substrate, the surface of the sintered copper alloy having a low friction characteristics (CuPb10Sn10, CuPb6Sn6Zn3, CuPb24Sn4, CuPb30, AlSn20Cu, CuSn8Ni) as bearing wear layer, copper alloy surface may need to use conditions processing various types of sump hole, oil hole, so as to not be suitable for continuous refueling refueling or difficult situations.
ApplicationsHole machining and non-machining thickness toleranceOil holeHasp
-
Construction Equipment: Track chassis running gear wheel set, towing wheel set, the tension wheel set;
Automotive industry: balance shaft bush, steel pin bushing, the kingpin Shaw bushings, rod bushings, valve rocker bushings, camshaft bushings, bushings differential, gearbox bushings, engine main bearing , thrust washers; And a piston side panels, side panels and other gear pump.
Hole machining and non-machining thickness tolerance
| Norminal Thiickness | Tolerances of Series B (non-machinable) | Tolerances of Series C (non-machinable) |
|---|---|---|
| 1.0 | -0.025 | +0.25,+0.15 |
| 1.5 | -0.030 | +0.25,+0.15 |
| 2.0 | -0.035 | +0.25,+0.15 |
| 2.5 | -0.040 | +0.30,+0.15 |
| 3.0 | -0.045 | +0.30,+0.15 |
| 3.5 | -0.050 | +0.30,+0.15 |

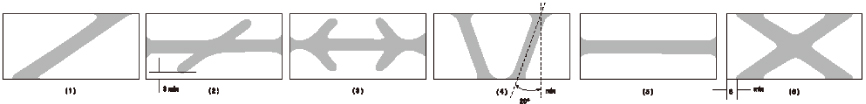

Oil hole

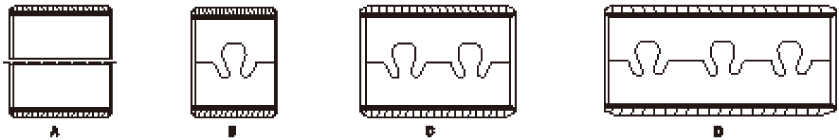

Hasp
-
-
